We have studied formation of galactic outflows from supernova explosions (SNe) with the moving-mesh code AREPO in a stratified column of gas with a surface density similar to the Milky Way disk at the solar circle. The movie shows a comparison of different simulation models for SNe placement and energy feedback, including cosmic rays (CR). We find that models that place SNe in dense gas and account for CR diffusion are able to drive outflows with similar mass loading as obtained from a random placement of SNe with no CRs. Despite this similarity, CR-driven outflows differ in several other key properties including their overall clumpiness and velocity. Moreover, the forces driving these outflows originate in different sources of pressure, with the CR diffusion model relying on non-thermal pressure gradients to create an outflow driven by internal pressure and the random-placement model depending on kinetic pressure gradients to propel a ballistic outflow.
Credit for the visualizations below should be given to Christine M. Simpson and the publication:

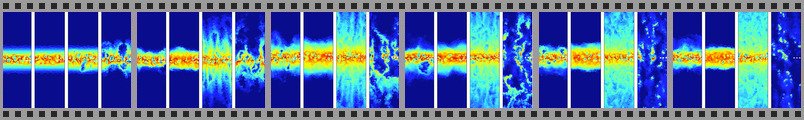

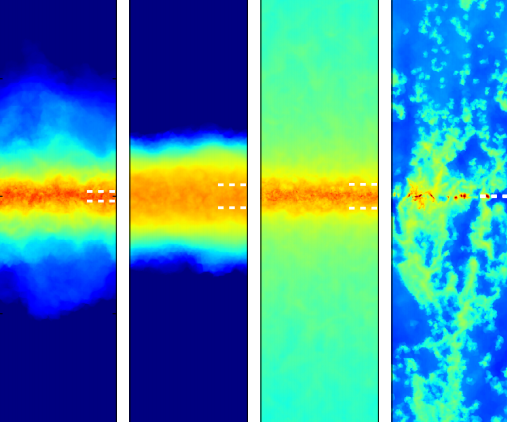

This movie compares the formation of galactic outflows in four different simulation models. Each column shows the projected gas density (see Figure 1 of Simpson et al. 2016 for further details). From left to right, the models shown are one without cosmic rays (NOCR), one with cosmic ray advection (CRAV), one with anisotropic cosmic ray diffusion (CRAD), and one without cosmic rays but with a random placement of supernovae (RAND).
